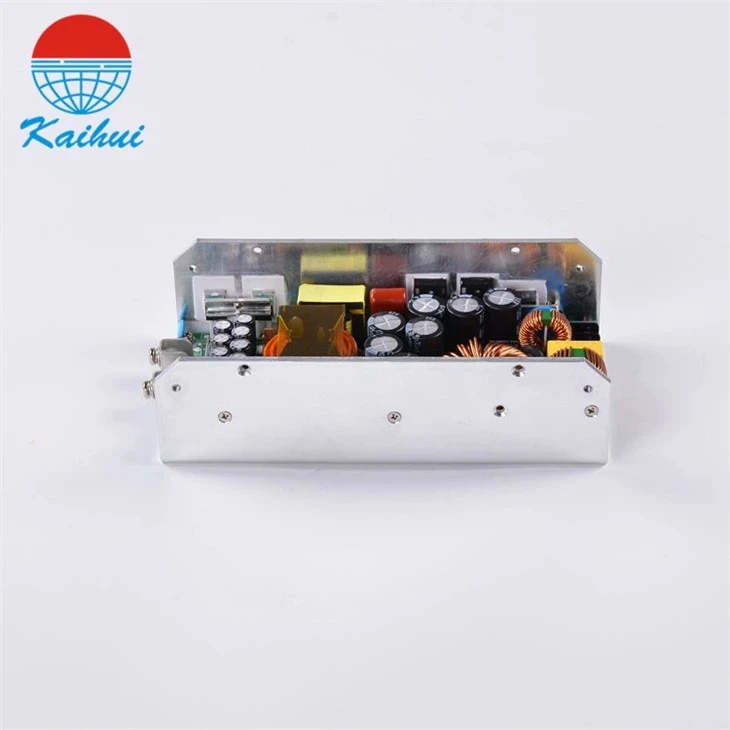

DC36V High Power 1500W SMPS

Specification

Model No.

K50-UP1500S36

Output

Output Voltage

+36VDC

Rated Current

41.7A

Rated Power

1501.2W

Ripple & Noise

500mVp-p

Output ADJ.Range

34.2-37.8V

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±1%

Set up,Rise,Keep up time

600ms,30ms,12ms

Input

Input Voltage Range

100-240V AC

Input Current

7.4A/230Vac,15.5A/115Vac

Input Frequency

50-60Hz

Efficiency

92.5%@230Vac

Power Factor

PF＞0.98/115V or PF＞0.95/230V

Inrush Current

Cold start 60A/230Vac

Leakage Current

＜0.5mA@240V

Protection

Over Load protection

105~150% Hiccup,automatic recovery

Short Circuit protection

Locked protection, Return to normal after restart

Output Over Voltage protection

＞120% Shut down,Locked protection, Return to normal after restart

Over Temperature protection

TS1 position＞105℃ it will be protection, then automatic recovery

Function

Fan Supply

12V@0.3A for driving a fan, tolerance±15%, Built-in fan forced air cooling

Remote

Remote ON-OFF Control

Power ON:short Power OFF:open

Environment

Working Temp., Humidity

-20~70℃,10~90% RH,No condensation

Storage Tem., Humidity

-20~85℃,10~95% RH

Temp,. Drift

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Satety & EMC

Safety Standards

GB4943 EN60950

Withstand Voltage

I/P-O/P:3KV; I/P-FG：1.8KV;O/P-FG:0.6KV AC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

Others

MTBF

＞50K hrs

Dimension

205*100*65mm(L*W*H)
