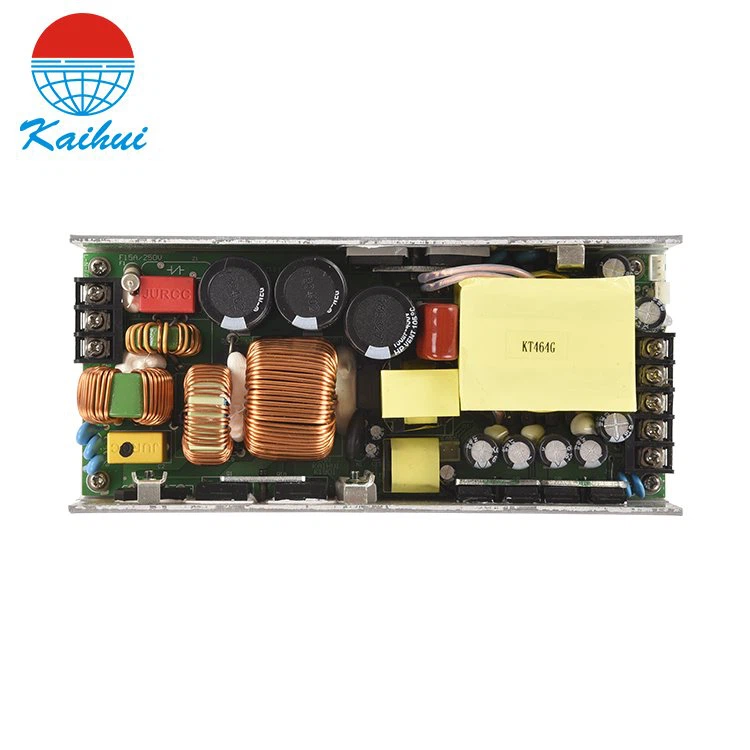

1000w 24v Power Supply CE

Item NO.

K19H-UP1000S24

CH1

Output

Output voltage

+24V

Rated current

42A

Current range

0-42A

Rated power

1008W

Ripple

300mVp-p

Output adjustable range

±5%

Output accuracy

±1%

Line regulation

±0.5%

Load regulation

±0.5%

Set-up, rise, hold up time

500ms, 30ms, 5ms/115VAC 300ms, 30ms, 10ms/230VAC

Input

Input voltage

88~264V AC

Input current

12A/115V 6A/230V

Frequency

47~63Hz

Efficiency

92% @230V, 88% @115V

Inrush current

40A@230V

Leakage current

<3.5mA@240V

Power factor

>0.9@220V, >0.95@110V

Protections

Overload protection

105~150% protection, automatic recovery

Short circuit protection

Automatic recovery

Output over voltage protection

30-33V

Over temperature protection

>105 ° C, the output is off, and the recovery is automatic.

Others

Auxiliary power

Provide 12V 0.2A auxiliary voltage output

Standby function

At the RC terminal, add a high level, turn off the CH1 and CH2 outputs.

Environments

Working temperature, humidity

-20~+60℃, 10~90% RH, No condensation

Storage temperature, humidity

-40~85℃, 10~95% RH

Temperature drift

±0.03%/℃(0~50℃)

vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC standards

Safety standard

GB4943

Withstand voltage

I/P-O/P: 3KV, I/P-FG: 1.5KV; O/P-FG: 0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG: 500VDC / 100M Ohms

EMC standard

EN55032 CLASS A, EN61000-3-2

Others

Dimension

180*82*48mm

weight

1.2Kg

Remark

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
