The K18-U200S24 is a meticulously engineered 24V 200W power supply designed to meet the rigorous demands of modern electronic systems. This open frame unit delivers a stable 24V output from a universal AC input, ensuring consistent performance across various regional power grids. Its design philosophy centers on achieving a balance between reliable functionality and cost-effectiveness, making it an ideal choice for manufacturers seeking a highly dependable power stage.

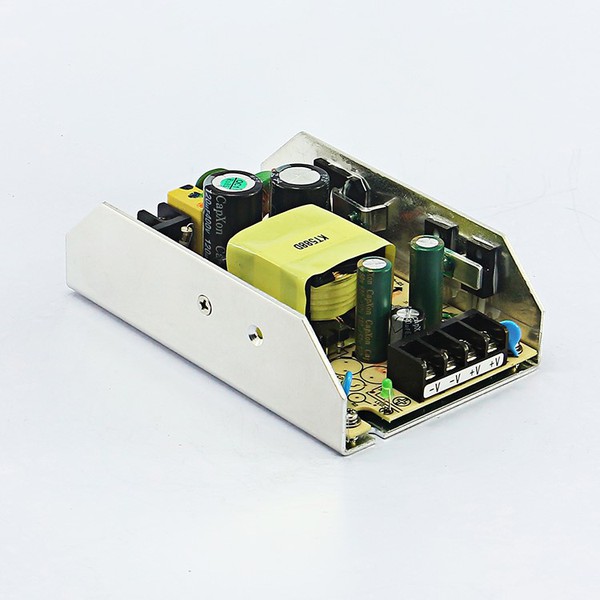

At its core, this 24V 200W power supply utilizes a switching regulator that achieves an operational efficiency of 87% at 230V AC input. This high efficiency translates directly into less energy dissipated as heat and a lower total cost of ownership over the product's lifespan. The unit is built on an open frame chassis measuring 127x82x40mm, allowing for seamless integration into space-constrained equipment enclosures where airflow and thermal dissipation are critical. Its compliance with safety standards such as GB4943 and EN60950 guarantees a product that is built for professional integration.
Product Parameters
|
Item NO |
K18-U200S24 |
|
|
Output |
Output Voltage |
+24V |
|
Rated Current |
8.3A |
|
|
Current Range |
0-8.3A |
|
|
Rated Power |
199.2W |
|
|
Ripple & Noise |
240mVp-p |
|
|
Adjustable Output Range |
±10% |
|
|
Output Accuracy |
±1% |
|
|
Line Regulation |
±0.5% |
|
|
Load Regulation |
±0.5% |
|
|
Set up, Rise, Keep up time |
50ms, 50ms, 20ms |
|
|
Input |
Input Voltage Range |
90-264V AC, 110-360V DC |
|
Input Current |
5A/115V, 2.5A/230V |
|
|
Input Frequency |
47-63Hz |
|
|
Power Factor |
--- |
|
|
Efficiency @230Vac |
87% |
|
|
Inrush Current |
30A@230V |
|
|
Leakage Current |
<0.5mA@240V |
|
|
Protection |
Over Load Protection |
105~150% Type: Hiccup Reset: automatic recover |
|
Short Circuit Protection |
Type: Hiccup Reset: automatic recover |
|
|
Over Temp, protection |
Cover temp >105℃, output closed, automatic recovery |
|
|
Environment |
Working Temp, Humidity |
-10~50℃, 10~90% RH, No condensation |
|
Storage Temp, Humidity |
-20~85℃, 10~95% RH |
|
|
Temp, Drift |
±0.03%/℃ (0~50℃) |
|
|
Vibration |
10~500Hz, 2G 10min/ 1cycle, PERIOD FOR 60min EACH AXES |
|
|
Safety&EMC Standards |
Safety Standards |
GB4943 EN60950 |
|
Withstand Voltage |
I/P-O/P: 1.5KV; I/P-FG: 1.5KV; O/P-FG: 0.5KV DC 1min |
|
|
Insulation Resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/ 100M Ohms |
|
|
EMC Standards |
GB9254 EN55022 CLASS B |
|
|
Others |
Dimension |
127*82*40mm (L*W*H) |
|
Weight |
0.5kg |
|
Application Scenarios
- Industrial Automation: Powering controllers, sensors, and actuator systems in programmable logic controllers (PLCs) and distributed control nodes. The stable 24V output is a standard industrial voltage for field instruments and automation equipment.
- LED Lighting Systems: Serving as a constant voltage driver for high-intensity 24V LED linear bars, track lighting, channel letters, and commercial display backlighting, leveraging the unit's compact size and efficient thermal management.
- Security and Surveillance: Providing reliable "always-on" power for 24V PTZ cameras, network video recorders, and access control panels, offering a cost-effective solution for budget-sensitive projects.
- Telecommunications Equipment: Ideal for customer-premises equipment and networking devices that require a 24V DC bus, benefiting from the low noise output and stable regulation.
- Medical Devices: Applicable in non-patient-contact medical apparatus such as diagnostic displays, laboratory analysis equipment, and medical trolley charging stations, backed by GB4943 and EN60950 safety certifications.
- Testing and Measurement Instruments: Providing clean, regulated 24V power for precision test equipment, laboratory instruments, and automated test systems where output stability is critical.
FAQ
Q1: How many pieces can you produce per month?
A1: 80K pieces
Q2: How big is the factory area?
A2: 6000㎡
Q3: hat's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
