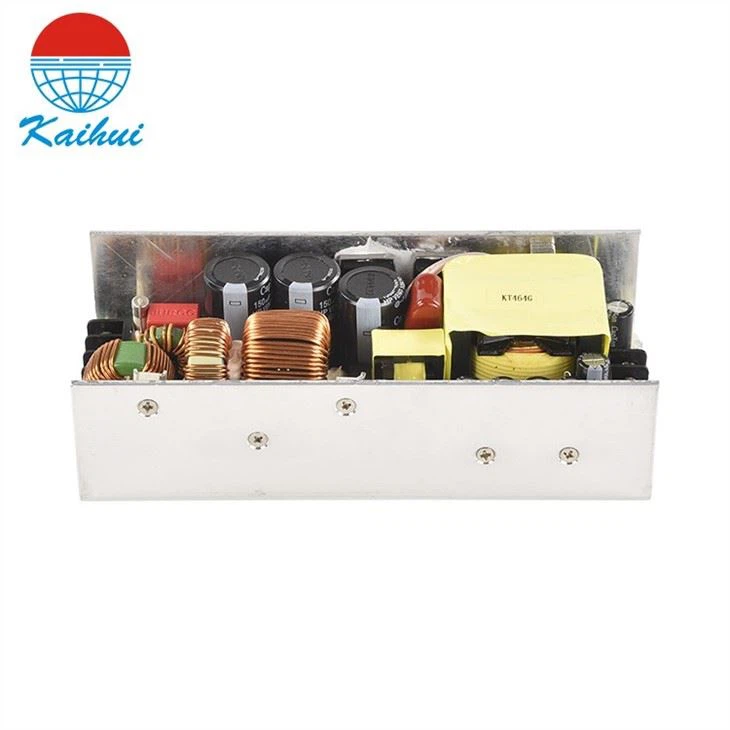

DC54V 1200W Smps

                    Item NO.

K19H-UP1200S54

Output

Output voltage

+54V

Rated current

22.25A

Current range

0-22.25A

Rated power

1200W

Ripple

540mVp-p

Output adjustable range

±5%

Output accuracy

±1%

Line regulation

±0.5%

Load regulation

±0.5%

Set-up,rise,hold up time

500ms, 30ms,5ms/115VAC   300ms, 30ms,10ms/230VAC

Input

Input voltage

88~264V AC

Input current

12A/115V  6A/230V

Frequency

47~63Hz

Efficiency

92% @230V,88% @115V

Inrush current

40A@230V

Leakage current

<3.5mA@240V

Power factor

>0.9@220V,>0.95@110V

Protection

Overload protection

105~150% protection, automatic recovery

Short circuit protection

Automatic recovery

Output overvoltage protection

57-63V

Over temperature protection

>105 ° C, the output is off, and the recovery is automatic.

Others

Auxiliary power

Provide 12V 0.2A auxiliary voltage output

Standby function

At the RC terminal, add a high level, turn off the CH1 and CH2 outputs.

Environment

Working temperature, humidity

-20~+60℃，10~90% RH，No condensation

Storage temperature, humidity

-40~85℃，10~95% RH

Temperature drift

±0.03%/℃(0~50℃)

vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC standards

Safety standards

GB4943

Withstand voltage

I/P-O/P： 3KV，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standard

EN55032 CLASS B,EN61000-3-2

Others

Dimension

180*82*48mm

weight

1.2Kg
