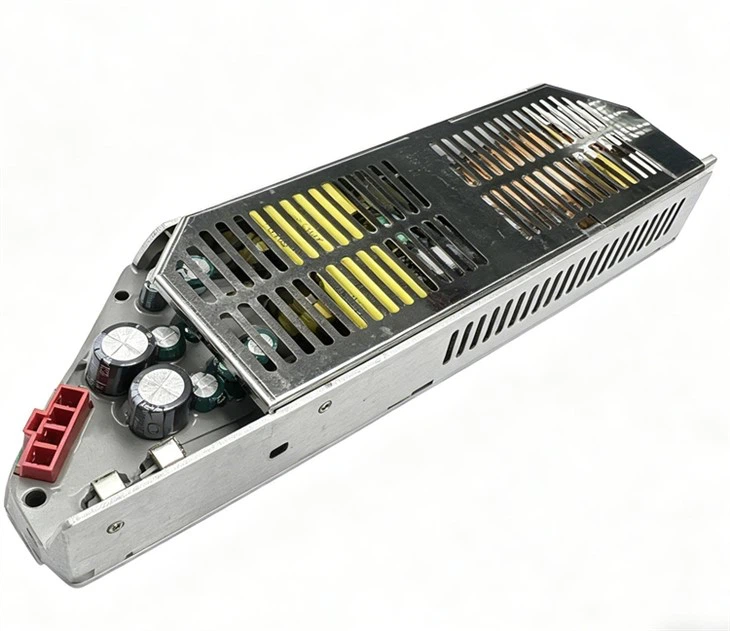

Products Description

This power supply adopts potting technology.

For the demanding requirements of maglev applications vs. the core advantages of a potting power supply:
High reliability & stability:Achieves IP67 protection rating, isolates moisture and dust, greatly reduces failure rate in harsh environments such as humidity and salt spray.
Maintenance-free / Long service life:Fanless design completely eliminates bearing wear and dust accumulation, while potting technology firmly secures components, significantly enhancing vibration and shock resistance – ideal for mobile or high-vibration scenarios.
High power density & heat dissipation:The potting compound efficiently conducts internal heat to the metal enclosure for dissipation, enabling a fanless design and reducing the power supply's size and weight.
Low EMI & noise:The potting material itself provides some wave absorption and vibration damping, helping to suppress high‑frequency noise. However, note that potting may alter parasitic parameters of the PCB and potentially worsen EMI performance – this is a risk that must be carefully avoided during design and material selection.
Energy saving & high efficiency:A high‑efficiency platform significantly reduces energy costs and heat dissipation, making the fanless design feasible.

Products Features:

Model	K95-UP2000S96
Output voltage	+96VDC
Rated current	20.93A
Rated power	2000W
Ripple &noise	500mVp-p
Output adjustable range	95-97V
Output accuracy	±1%
Line regulation	±1%
Load Regulation	±0.5%
Setup,rise,hold up time	1000ms,20ms,10ms
Input voltage range	90V~264V AC
Input Current	12A@220VAC 25A@110VAC
efficiency @230Vac	>93%
Power factor	PF>0.97/230V
Inrush current	Cold start 60A/230Vac
Leakage current	<0.75mA@240V
Overload protection	The current limit point is set to 120% of the rated current with constant current foldback. The output is disabled when the voltage falls below 50%, and auto‑recovery is provided.
Output short circuit protection	Hiccup protection,automatic recovery
Output over voltage protection	120-125V Lock protection, need to be restored after 5 minute after turning off the power.
Brown-Out Protection	≤75VAC,Protection type: Auto recovery
Working temp.,humidity	-20~70℃,10~90% RH,No condensation
Storage temp.,humidity	-40~85℃,10~90% RH,No condensation
Safety standards	UL62368-1, BS EN/EN62368-1, IEC62368-1, GB4943.1, IEC60601-1
Withstand voltage	I/P-O/P:4KV; I/P-FG:2KV;O/P-FG:1.5KV AC 1min.
Insulation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 50M Ohms
EMC standards	EN55032 Class B,EN61000-3-2 Class D
MTBF	>250K hrs ,MIL-HDBK-217F(25℃)
Size	3419255mm(LWH)
Weight	2.0 Kg

2000W smps 1

2000W smps 4

FAQ

1,Why the power supply must be Vacuum degassinge?

To prevent air bubbles from being trapped in the potting compound (which can form a thermal insulation layer, impairing heat dissipation and voltage withstand capability), vacuum degassing must be performed after potting.

2,What is the Curing control of the power supply potting?

Temperature and time must be strictly controlled to ensure the potting compound is fully cured while minimizing internal stress.

3,why we need to be Repairability considerations when produce the 2000W smps?

Because the Silicone is relatively soft and can be carefully cut open with tools for repair. In contrast, epoxy resin is extremely hard, making repair almost impossible without damaging the module. Once internal components fail, the entire module may have to be scrapped."
