Guangzhou Kaihui Electronics Co., Ltd. is one of the leading manufacturers and suppliers of customized 36v 1000w lights smps from china factory in China. With abundant experience, our factory offer high quality products made in China with competitive price. Welcome to contact us for customized service.

OUTPUT SPECIFICATION
Output voltage	36V
Rated current	28A
Rated power	1008W
Ripple &noise	400mV
Output accuracy	±2%
Line regulation	±0.1%
Load Regulation	±2%
Setup, rise, hold up time	500ms,40ms,12ms
INPUT SPECIFICATION
Rated input voltage	100V~240V AC
Input voltage range	90V~264V AC
Input Current	12A max
Frequency Range	47~63Hz
efficiency @230Vac	94%
Power factor	PF＞0.98/100V,PF＞0.95/230V
Inrush current	Cold start 60A/230Vac
Leakage current	<0.75mA@240V
PROTECTION FUNCTION
Overload protection	120~170% Hiccup protection, automatic recovery
Output short circuit protection	Lock protection, need to be restored after 5 minute after turning off the power
Output over voltage protection	42~46V,Lock protection, need to be restored after 5 minute after turning off the power
Brown-Out Protection	≤75VAC,Protection type: Auto recovery
Over temperature protection	TSW1＞105±10℃ shutdown,<75±15℃ recovery.
ENVIRONMENT
Working temp.,humidity	-20~60℃,10~90% RH,No condensation
Storage temp.,humidity	-40~85℃,10~95% RH
Temperature Coefficient	±0.3%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

SAFETY & EMC STANDARD
Safety standards	GB4943 EN60950-1,EN62368-1
Withstand voltage	I/P-O/P:3KV; I/P-FG：1.8KV;O/P-FG:0.6KV AC 1min.
Insulation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 50M Ohms
EMC/EMC standards	EN55015 Class B ,EN61000-3-2 Class C. EN61000-3-3, EN 55024;EN 61000-4-2, Performance Criteria B, EN 61000-4-5, Performance Criteria C
Others
MTBF	＞50K hrs ,MIL-HDBK-217F(25℃)
Size	1988255mm(LWH)
Weight	1.2 Kg
Note
All parameters are measured under the conditions of 230VAC input, rated load, ambient temperature 25℃ and humidity 70%; Accuracy:including setting error, line regulation,load regulation, etc. Line regulation: measured with the input voltage changes from low to high under rated load conditions; Load regulation: measured with output changes from 0 load to 100% load; Ripple test: Connect the power supply and the load with a 30cm-long twisted wire. The load end is connected with 0.1u and 47u capacitors, and it is measured at the load end with a 20MHz oscilloscope; At least 35CFM fan is required to dissipate heat when load ＞640w.

EMC test statement: When the power supply is actually used, in order to eliminate wire interference and obtain a larger EMC margin, it is necessary to wrap a magnetic ring around the input L and N wires of the power supply (model: Dongyang D5A, T25*12*15,3 lock up).Output the DC line and wind it around a magnetic ring (model: Dongyang DYR-2928-160A, 3 turns).It is recommended that the power supply should be placed reasonably, the casing should be well grounded, and wiring should be avoided above sensitive components such as filters, large magnetic rings, and transformers, and shielding should be done around the installation chassis.The above method is only for single power supply and pure resistive load test. Customers can make corresponding changes when using the whole machine, subject to the final equipment meeting EMC requirements.

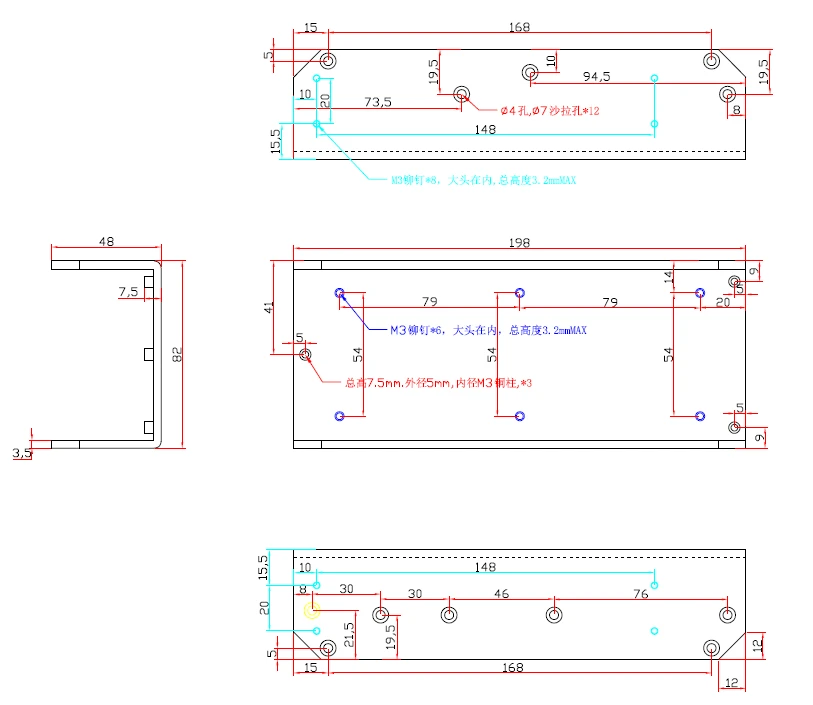

Dimension：

Unit：mm

product-813-705

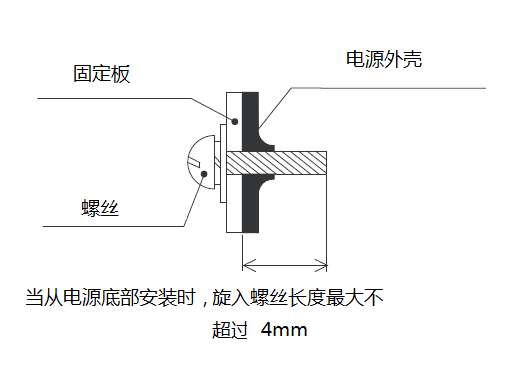

Note: The components on the board will extend beyond the shell, with a maximum height of 55mmMAX. Special attention to installation: When installing from the bottom of the power supply, the maximum depth of screws must be 4mmMAX.
