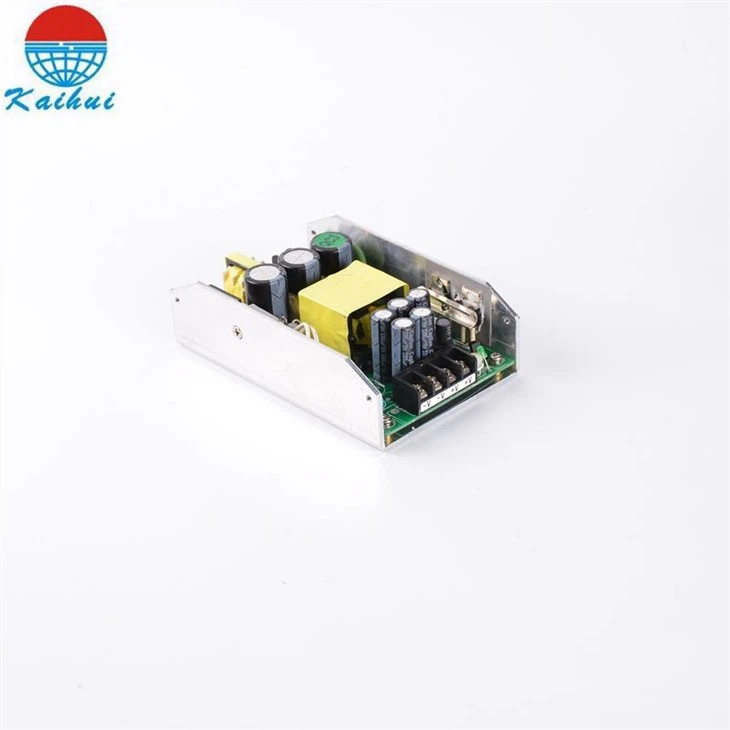

200W POE Switch Power Supply

Model

K18-U200D48+12

Output

Output Voltage

Rated Current

CH1:4A       CH2:1A

Current Range

CH1:0.1-4A   CH2:0.1-1A

Rated power

204W

Ripple

CH1:480mVp-p  CH2:150mVp-p

Adjustable output range

CH1:±10%

Output Accuracy

CH1:±1%      CH2:±5%

Line Regulation

CH1:±0.5%    CH2:±1%

Load Regulation

CH1:±0.5%      CH2:±4%

Set up,Rise,Keep up time

50ms,50ms,20ms

Input

Input Voltage range

90~264V AC

Input current

4A/115VAC;2A/230VAC

Input frequency

50~60Hz

Efficiency

88%@230VAC

Inrush current

30A@230VAC

Leakage Current

<0.5mA@240V

Protection

Over load protection

105~150%,,Hiccup protection, automatic recovery

Short circuit protection

Hiccup protection, automatic recovery

Output overvoltage

CH1:52~56V

Environment

Working Temp.,Humidity

-10~60℃，10~90% RH，No condensation

Storage Temp.,Humidity

-20~85℃，10~95% RH

Safety&EMC Standards

Safety standards

GB4943,EN60950

Withstand voltage

I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

GB9254

Others

Dimension

127*82*40mm

Weight

0.5Kg
