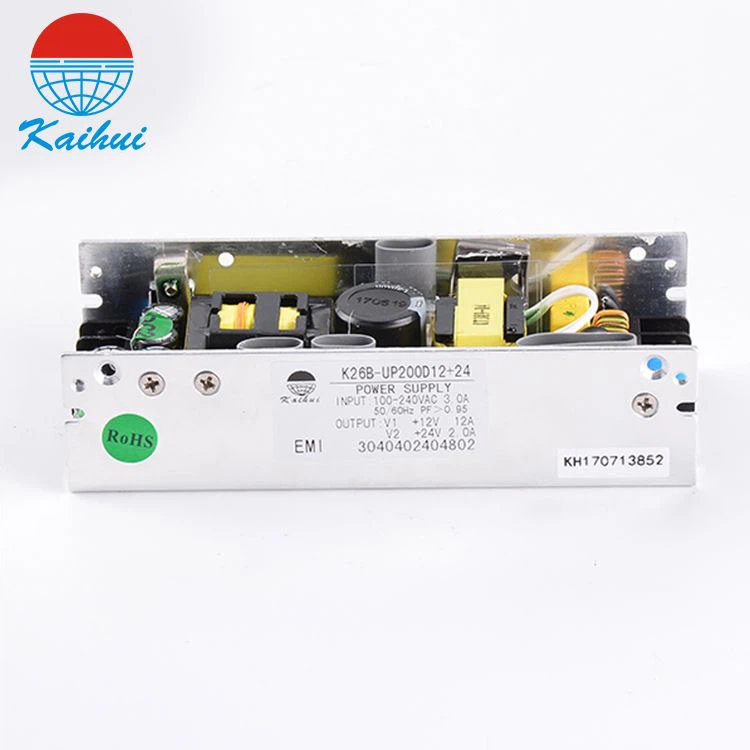

36V 12V Moving Head Power Supply

DC Output Voltage

Rated Current

Current Range

Rated Power

Ripple & Noise

Adjustable Output voltage Range

±10%

Output Accuracy

CH1:±1%        CH2:+/-5%

Line Regulation

CH1:±0.5%     CH2:+/-2%

Load Regulation

CH1:±0.5%      CH2:+/-5%

Set up,Rise,Keep up time

500ms, 50ms, 20ms

AC Input Voltage

100-240V

Input Current

2.5A/115V,1.2A/230V

Input Frequency

47~63Hz

Efficiency

>89%@230V,＞85%@115V

>90%

Inrush Current

Leakage Current

<0.5mA@240V

Over Load Protection

105~180%,Hiccup protection,automatic recovery

Short Circuit Protection

Hiccup,automatic recovery

Over-temperature protection

＞105 ℃ protection, automatic recovery

Environment

Working Temp.,Humidity

-20~40℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES

Safety&EMC Standards

Safety Standards

GB4943 EN62368-1

Withstand Voltage

I/P-O/P:1.5KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC

Insulation Resistance

I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms

EMC Standards

GB9254 EN55032 CLASS B EN61000-3-2

148*60*38mm

>50000Hrs
