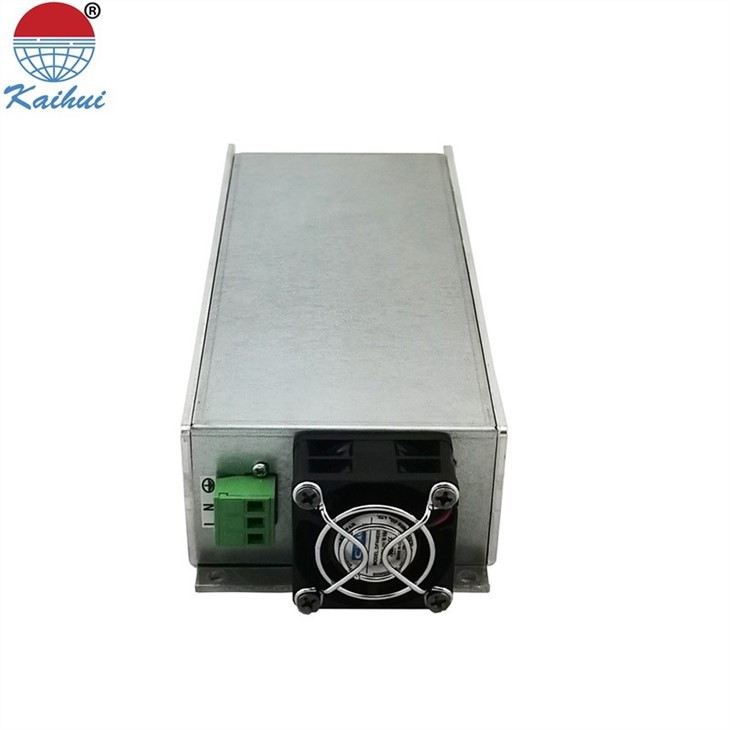

1200w 24v Power Supply

Item NO

K19H-UP1200S24F

Output

Output Voltage

+24VDC

Rated Current

50A

Rated Power

1200W

Ripple & Noise

250mVp-p

Output ADJ.Range

22.8-25.2V

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±1%

Set up, Rise, Keep up time

500ms, 30ms, 20ms

Input

Input Voltage Range

100-240V AC

Input Current

6A/230Vac, 12A/115Vac

Input Frequency

50-60Hz

Efficiency @230Vac

92%

Power Factor

PF＞0.98/115V or PF＞0.95/230V

Inrush Current

Cold start 40A/230Vac

Leakage Current

＜0.5mA@240V

Protection

Over Load

105~150% Hiccup, automatic recovery

Short Circuit

Hiccup, automatic recovery

Output Over Voltage

＞120% Shut down, Locked protection, Return to normal after restart

Over Temp.,

＞105℃ it will be protection, then automatic recovery

Functions

Fan Supply

12V@0.3A for driving a fan, tolerance±15%, Built-in fan forced air cooling

Environment

Working Temp., Humidity

-20~60℃, 10~90% RH, No condensation

Storage Temp., Humidity

-20~85℃, 10~95% RH

Temp, . Drift

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety & EMC

Safety Standards

GB4943

Withstand Voltage

I/P-O/P:3KV; I/P-FG: 1.8KV; O/P-FG:0.6KV AC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

EN55032 CLASS A EN61000-3-2

Others

MTBF

＞50K hrs

Dimension

180*82*48mm (L*W*H)

Weight

1.5KG

Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured;
