Specification
Item No.		K05-U60D24
Output	Output Voltage	+24V ;-24V
	Rated Current	2A ; 1A
	Current Range	0.2-2.5A ; 0.1-1A
	Rated Power	72W
	Ripple & Noise	240mVp-p ;240mVP-P
	Adjustable Output voltage Range	±10%
	Output Accuracy	±1% ; +/-6%
	Line Regulation	±0.5% ;+/-2%
	Load Regulation	±0.5% ;+/-5%
	Set up,Rise,Keep up time	500ms, 100ms, 30ms
Input	Input Voltage	85-264VAC
	Input Current	2.4A/115V,1.2A/230V
	Efficiency	>82%
	Inrush Current	Cold start 30A/230VAC
	Leakage Current	<0.5mA@240V
Protection	Over Load Protection	105~150%,Hiccup protection,automatic recovery
	Short Circuit Protection	Hiccup,automatic recovery
Environment	Working Temp.,Humidity	-20~60℃,10~90% RH,No condensation
	Storage Temp.,Humidity	-20~85℃,10~95% RH
	Temp.,Drift	±0.03%/℃(0~50℃)
	Vibration	10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
Safety&EMC Standards	Safety Standards	GB4943 EN55022 Class A
	Withstand Voltage	I/P-O/P:1.5KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC
	Insulation Resistance	I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
	EMC Standards	GB9254 EN55032 CLASS A
Others	Size	1107835mm
	Weight	0.35KGS

k07-u100t3-(4)_1

Q1:How long we can get the samples of the customized power supply?

A1:7-10 working days after receiving your payment.

Q2:What is your MOQ for the bulk order?

A2:Usually it is 200pcs per order of the common SMPS.

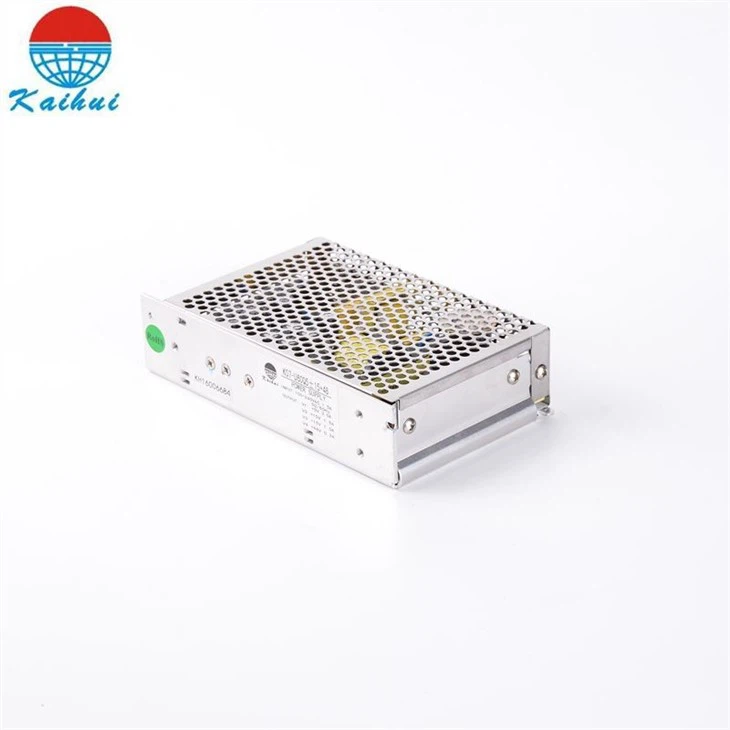

Dual +24V -24V Power Supply
