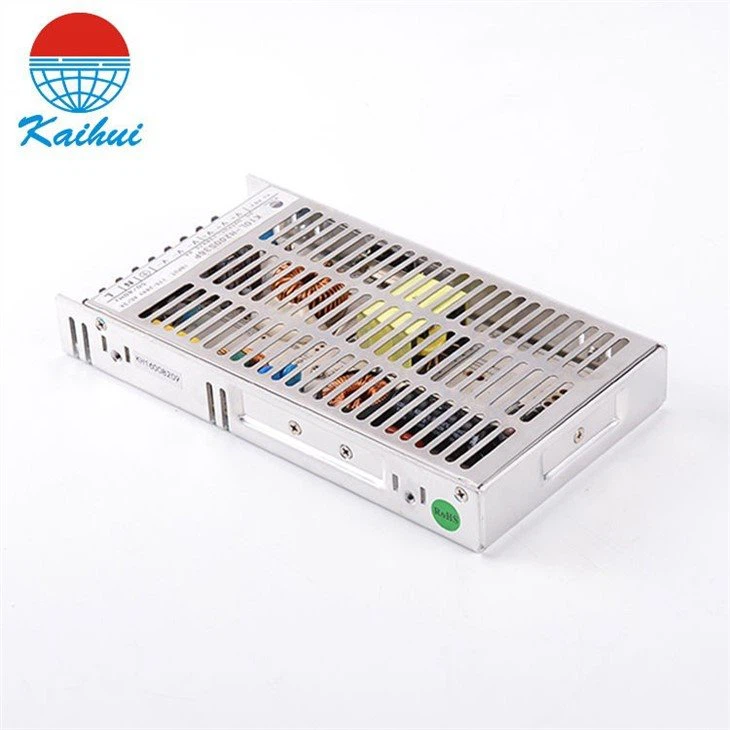

If you are looking for a reliable and efficient 12V switching power supply, then you have come to the right place. Our 200W power supply is UL approved, ensuring that it meets high safety standards and is recognized by the regulatory authorities.
Features:
1, 200W AC DC power supply;
2, International universal full voltage input;
3, Overload, short circuit, reverse connection and other protection;
Parameter | ||
Item NO. | K10L-H200S12 | |
Output | Output voltage | 12V |
Output current | 16.7A | |
Output current range | 0-16.7A | |
Rated power | 204W | |
Ripple | 150mVp-p | |
Output adjustable range | ±10% | |
Output Accuracy | ±1% | |
Line Regulation | ±0.5% | |
Load Regulation | ±0.5% | |
Set up, Rise, Keep up time | 1000ms, 30ms, 10ms/115VAC 500ms, 30ms, 20ms/230VAC | |
Input | Input Voltage range | 100-240VAC |
Input current | 4A/115VAC, 2.2A/230Vac | |
Input frequency | 47~63Hz | |
Efficiency | 88% @ 220V AC | |
Inrush current | COLD START 30A/230V | |
Leakage Current | <2mA/240VAC | |
Protection | Over load protection | 105~150%, off type protection, and automatic recovery |
short circuit protection | Snoring protection, automatic recovery | |
Output over-voltage protection | Snoring protection, automatic recovery | |
Environment | Working Temp., Humidity | -40~50℃, 10~90% RH, No condensation |
Storage Temp., Humidity | -40~85℃, 10~95% RH | |
Temp., Drift | ±0.03%/℃(0~50℃) | |
Vibration | 10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES | |
Safety&EMC standards | Safety standards | GB4943 IEC62368-1, UL62368-1 |
withstand voltage | I/P-O/P: 3KV; I/P-FG: 1.5KV; O/P-FG: 0.6KV AC 1min. | |
Insulation resistance | I/P-O/P, I/P-FG, : 500VDC/ 100M Ohms | |
EMC standards | GB9254 Class B | |
Others | Dimension | 215*115*30mm (L*W*H) |
Weight | 0.6Kg | |
FAQ
Q1: Is there any certificate for the switching power supply?
A1: YES, some of our power supply have the CE, PSE, UL, ETL, and CCC certificate.
