Description

Technical Parameters

The K18N-UP200S series power supply, with the active PFC, so the power factor is more than 0.9, the input voltage is from 90VAC to 240VAC, CE and ETL certification are available.

Features:

1, 200W high efficiency 36V switching power supply, low temperature rise;

2, Built-in filters power supply, low output noise;

3, Wide range of AC input voltage, 36V 200W single output power supply;

4, Short circuit, overload, over voltage protection;

Parameter
Item NO		K18N-UP200S36
Output	Output Voltage	+36V
	Rated Current	5.6A
	Current Range	0-5.6A
	Rated Power	201.6W
	Ripple & Noise	360mVp-p
	Adjustable Output Range	±10%
	Output Accuracy	±1%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Set up, Rise, Keep up time	500ms, 50ms, 20ms
Input	Input Voltage Range	88~264V AC
	Input Current	1.2A@220V AC
	Input Frequency	47~63Hz
	Power Factor	＞0.99@110V, >0.95@220V
	Efficiency@220V AC	＞88%
	Inrush Current	Cold start 15A/115V, 30A/230V
	Leakage Current	<0.35mA@240V
Protection	Over Load Protection	110~200%, Hiccup, automatic recovery
	Short Circuit Protection	Hiccup, automatic recovery
	Over Temp., protection	95℃ Protection Type:Shut down o/p voltage, Auto-recover after temperature down
Environment	Working Temp., Humidity	-20~50℃, 10~90% RH, No condensation
	Storage Temp., Humidity	-20~85℃, 10~95% RH
	Temp., Drift	±0.03%/℃(0~50℃)
	Vibration	10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
Safety&EMC Standards	Safety Standards	GB4943, EN60950-1
	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
	EMC Standards	MEET EN55022 CLASS B, EN61000-3-2
Others	Dimension	1278245mm(LWH)
Others	Weight	0.6kg
Notes	1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured.

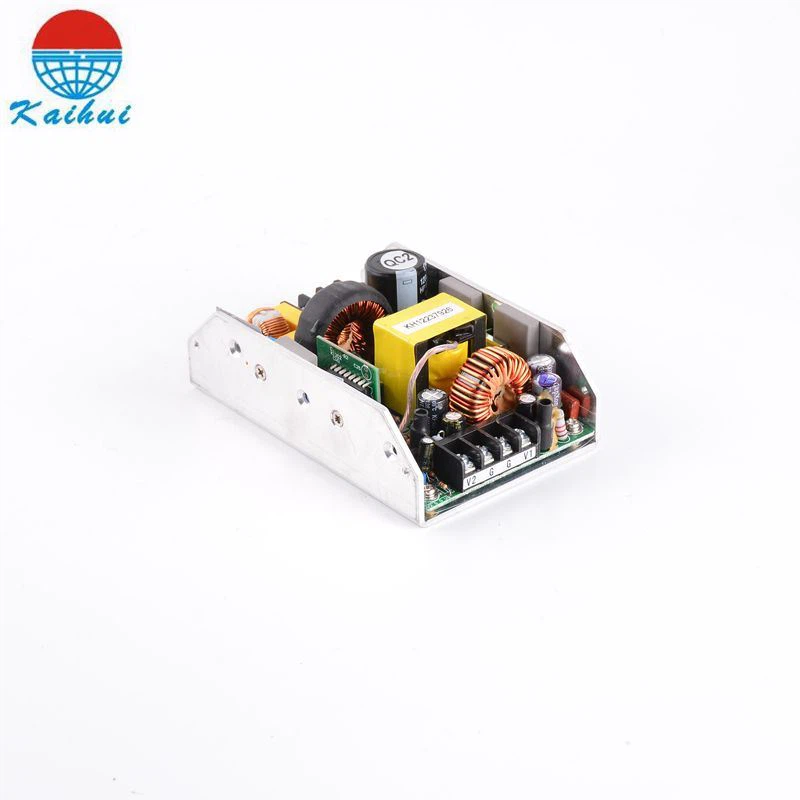

200w 36v switching power supply
