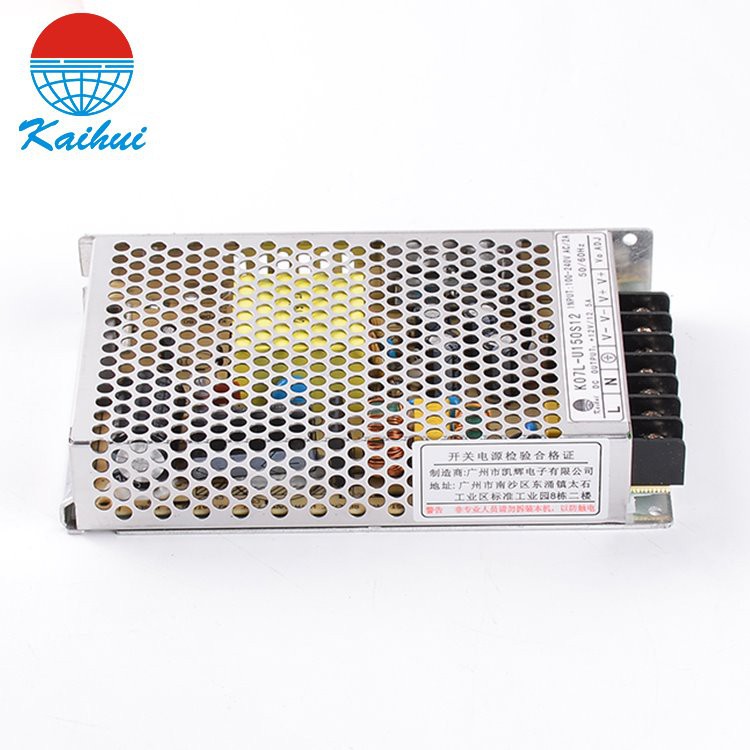

Class 2 UL Certified 12VDC 120W LED Power Supply

Item No.

K07L-U150S12

Output

Output Voltage

+12V

Rated Current

12.5A

Current Range

0-12.5A

Rated power

150W

Ripple

120mVp-p

Adjustable output range

±5%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up, Rise, Keep up time

500ms, 50ms, 20ms

Input

Input Voltage range

90~264VAC;110~360VDC

Input current

4A/220VAC

Input frequency

47~63Hz

Efficiency

86%

Inrush current

2A@115Vac, 1A@230Vac

Leakage Current

0.5mA /240Vac

Protection

Over load

110~200%, automatic recovery

Short circuit

Hiccup protection, automatic recovery

Output over voltage

18-21V, Hiccup protection, automatic recovery

Over Temp.

------

Function

Temperature controlling fan:>50℃, the fan working; <45℃, the fan stopping.

Environment

Working Temp., Humidity

-20~60℃, 10~90% RH, No condensation

Storage Temp., Humidity

-20~85℃, 10~95% RH

Temp., Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC Standards

Safety standards

GB4943.1-2011, EN60950-1, EN62368-1

Withstand voltage

I/P-O/P: 3KV, I/P-FG: 1.8KV; O/P-FG:0.5KV AC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

EN55022B

Others

Dimension

159*98*30mm

Weight

0.6kg

Note

1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured;
