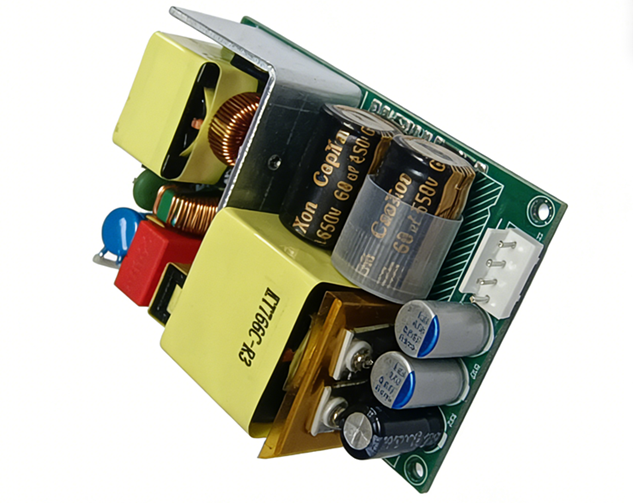

Products Description The Far-infrared therapy device power supply 200W 250W has a rated power of 259.5W (fan cooling), while far-infrared therapy devices typically have a power rating of tens of watts to around 200W. Therefore, the power reserve is sufficient to stably drive the infrared heating element and control circuit. The 15V DC output is suitable for low-voltage heating modules or circuit designs requiring multi-channel voltage regulation, ensuring high safety. With 90-264VAC input, it supports global voltages, facilitating product export or use in different regions. Compliant with GB9706 / EN60601-1 medical device safety standards, featuring reinforced insulation (I/P-O/P withstand voltage 4.2kV), effectively isolating high-voltage and low-voltage components and reducing the risk of electric shock to patients. Leakage current <0.1mA, far below the limits for medical devices (typically required <0.5mA), ensuring safety for human contact.
Products Parameter：KPSP260-15 KPS260-36paramenters of 200W Far-infrared therapy device smpsThis switch mode power supply real output watts is 260W when there is the cooling FAN(10cfm),if there is no the cooling FAN,the max power is 200W.
*If you need any other similar smps,please contact me,we can customize the power supply for you,thanks!
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
After-Sales Service & Technical Support
- Standard Warranty Commitment: All products come with an industry-standard 24-month warranty period. We also support long-term maintenance after the warranty expires.
- Flexible Spare Parts and Repair: We keep a stock of core spare parts to support quick replacement. We provide an efficient repair process. Generally, faulty parts can be repaired and returned within 5-7 working days.
- On-Site Support: For urgent or complex problems, we can arrange technical personnel to provide on-site technical support and troubleshooting (arranged based on specific situations).
FAQ
Q: The power supply has a wide input voltage range (88-264VAC). Can it really be used directly in any country around the world without adjustment?
A: Yes. The KPS260 series is designed with a full-voltage input that works in all countries. When the single-phase AC power grid voltage in your area is between 88V and 264V (covering standard voltages like 100V, 115V, 220V, 230V, 240V, and so on) and the frequency is between 47Hz and 63Hz, the power supply can automatically adapt and work normally. You don't need any manual switching or adjustment.
Q: What impact does low ripple of power supply have on Far-infrared therapy device?
A: The smps ripple has the great influence on the Far-infrared therapy device,because the core of an infrared therapy device is the generation of infrared rays of a specific wavelength through an infrared radiator (such as a carbon fiber tube or ceramic heating element). The stability of its heating power directly determines the stability of the radiated energy and the temperature constancy of the treatment area. Ripple is essentially AC fluctuation superimposed on a DC output. High ripple means that the voltage/current driving the infrared element is constantly fluctuating slightly, leading to unstable heating power. This causes temperature fluctuations, control loop interference, and makes it difficult to maintain precise temperature control.
