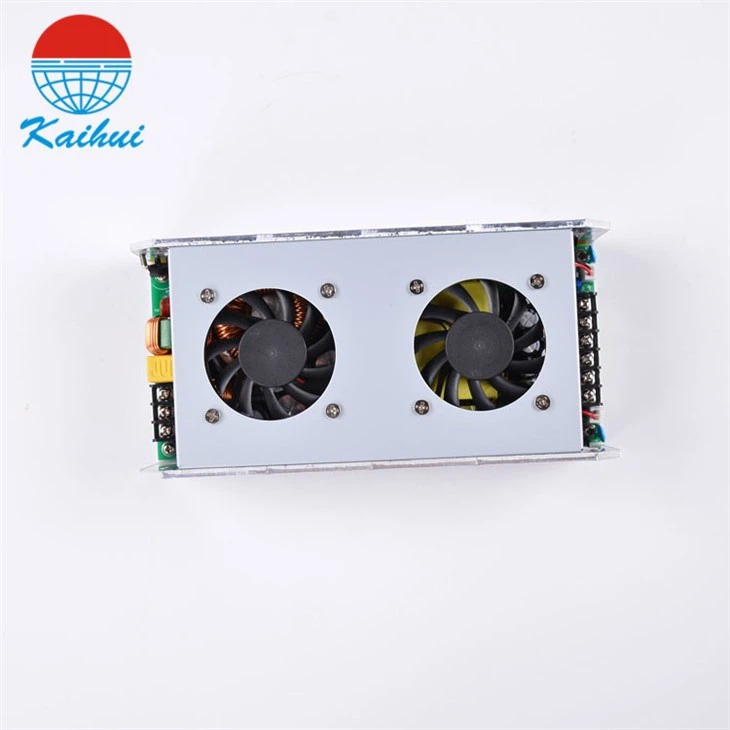

DC30V 50A High Power Supply

DC30V 50A High Power Supply

The model of K50-UP1500S30F is the enclosed model,it is AC to DC switch mode power supply,the 30VDC output voltage is customized by oue clients,
Send Inquiry
Description
Technical Parameters
                                                                                                        Parameter
Item NO
K50-UP1500S30F
OutputOutput Voltage+30VDC
Rated Current50A
Rated Power1500W
Ripple & Noise400mVp-p
Output ADJ.Range28.5-31.5V
Output Accuracy±1%
Line Regulation±0.5%
Load Regulation±1%
InputInput Voltage Range100-240V AC
Input Current7.4A/230Vac,15.5A/115Vac
Input Frequency50-60Hz
Efficiency @230Vac92%
Inrush CurrentCold start 60A/230Vac
Leakage Current<0.5mA@240V
ProtectionOver Load105~150% Hiccup,automatic recovery
Short Circuit

Locked protection, Return to normal after restart

Output Over Voltage

120% Shut downLocked protection,  Return to normal after restart

Over Temp.,

TS1 position105℃ it will be protection, then automatic recovery

FunctionFan Supply

12V@0.3A for driving a fan, tolerance±15%, Built-in fan forced air cooling

RemoteRemote ON-OFF ControlPower ON:short    Power OFF:open
EnvironmentWorking Temp., Humidity

-20~70℃10~90% RHNo condensation

Storage Temp., Humidity

-20~85℃10~95% RH

Temp,. Drift

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Satety & EMCSafety StandardsGB4943 EN60950
Withstand Voltage

I/P-O/P:3KV; I/P-FG1.8KVO/P-FG:0.6KV AC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

OthersMTBF>50K hrs
Dimension205*100*65mm(L*W*H)
Weight1.5KG

dsc_9684_1

    DC30V 50A High Power Supply is an essential tool that is widely used in industrial applications. This high power supply is designed to deliver a constant and stable current to power various types of equipment and machinery. It offers an efficient, reliable, and safe source of power for heavy-duty tasks, making it an ideal choice for professionals and industrial workers.


   One of the advantages of DC30V 50A High Power Supply is its high power output. It is capable of delivering up to 50 amps of current, which makes it ideal for powering high-power devices and equipment. Additionally, it operates on DC voltage, making it more efficient and reliable than other power supplies that use AC voltage.


   Another advantage is its stability and reliability. DC30V 50A High Power Supply is designed with high-quality components that ensure stable and reliable operation over long periods. This means that it can power heavy-duty equipment without experiencing power fluctuations or interruptions, ensuring smooth and efficient operation.


   Furthermore, this high power supply is designed to be safe to use. It comes with built-in safety features such as overcurrent protection, over-voltage protection, and short circuit protection. These features protect the equipment and the operator in case of any electrical faults, making it a safe and reliable power supply.


   In conclusion, DC30V 50A High Power Supply is an essential tool for industrial workers and professionals who need a reliable and efficient source of power for heavy-duty applications. With its high power output, stability, and safety features, it provides a positive and productive experience for users who rely on it for their daily tasks.
